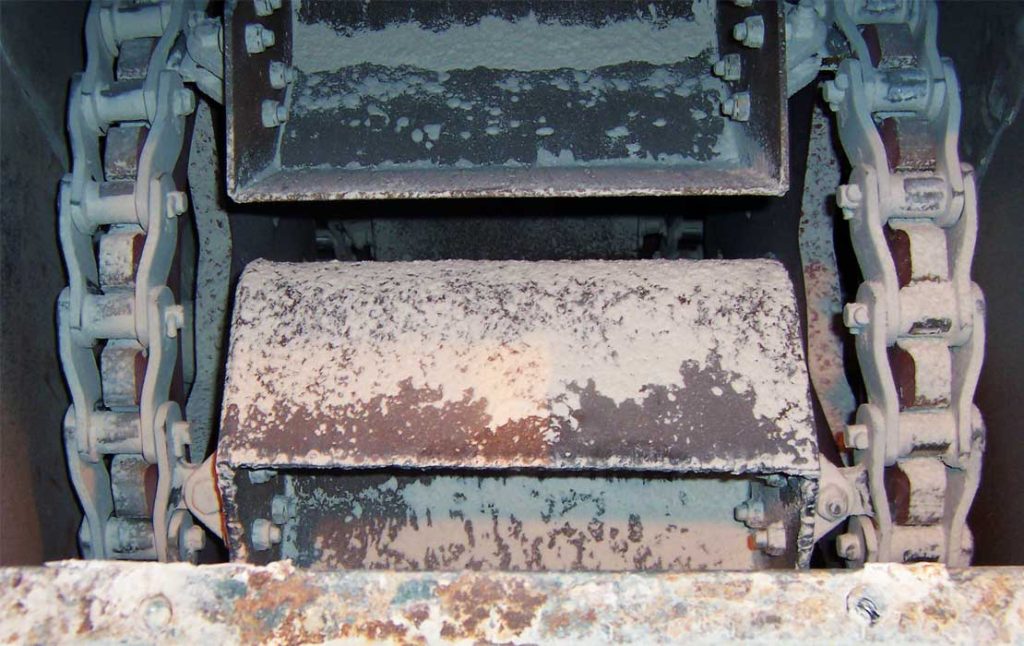

This John Kings works standard includes a range of crank link steel bush chains that offer maximum versatility either in conveying or elevating applications. This series was originally developed to offer an all steel direct replacement for the Cast Bush and Pintle chains. Materials employed, with case hardened alloy steel pin and bush ensure reliable performance.
The crank link construction is a more convinient and effective style. One link can be added or removed if chain length is altered. Any variety of attachments can be fabricated and welded to the base chain. This is generally K style but F, G and S are also popular.
JOHN KING MAXI SERIES

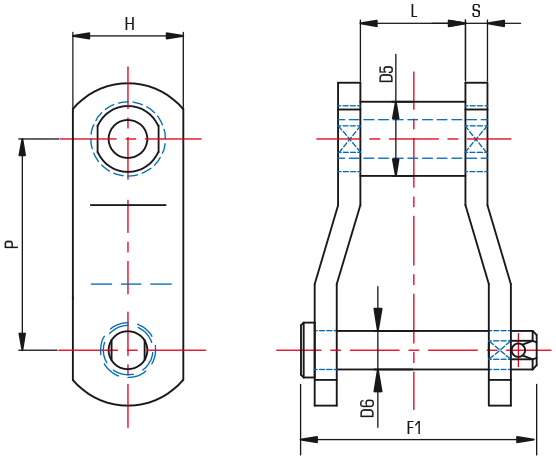

| Chain Number | Pitch (P) (mm) | Over-all Pin & Cotter (F1) (mm) | Bushing Outside Diameter (D5) (mm) | Between Sidebars (L) (mm) | Sidebars Thickness (S) (mm) | Sidebars Height (H) (mm) | Pins Diameter (D6) (mm) | Average Ultimate Strength (kg) | Average Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| MX603 | 76.2 | 88 | 22.5 | 38 | 8 | 40 | 14 | 20,000 | 11.02 |
| MX503 | 76.72 | 86 | 27.8 | 38 | 8 | 40 | 14 | 20,000 | 9.25 |
| MX604 | 101.6 | 117 | 25 | 57 | 10 | 50 | 16 | 27,500 | 14.92 |
| MX704 | 103.1 | 123 | 30 | 57 | 10 | 55 | 18 | 35,000 | 22.63 |
| MX504 | 103.1 | 110 | 33.3 | 50 | 10 | 50 | 16 | 27,500 | 12.66 |
| MX600 | 153.4 | 110 | 28.6 | 50 | 10 | 50 | 18 | 30,000 | 15.51 |
| MX500 | 153.5 | 110 | 32 | 50 | 10 | 40 | 18 | 25,000 | 8.95 |
