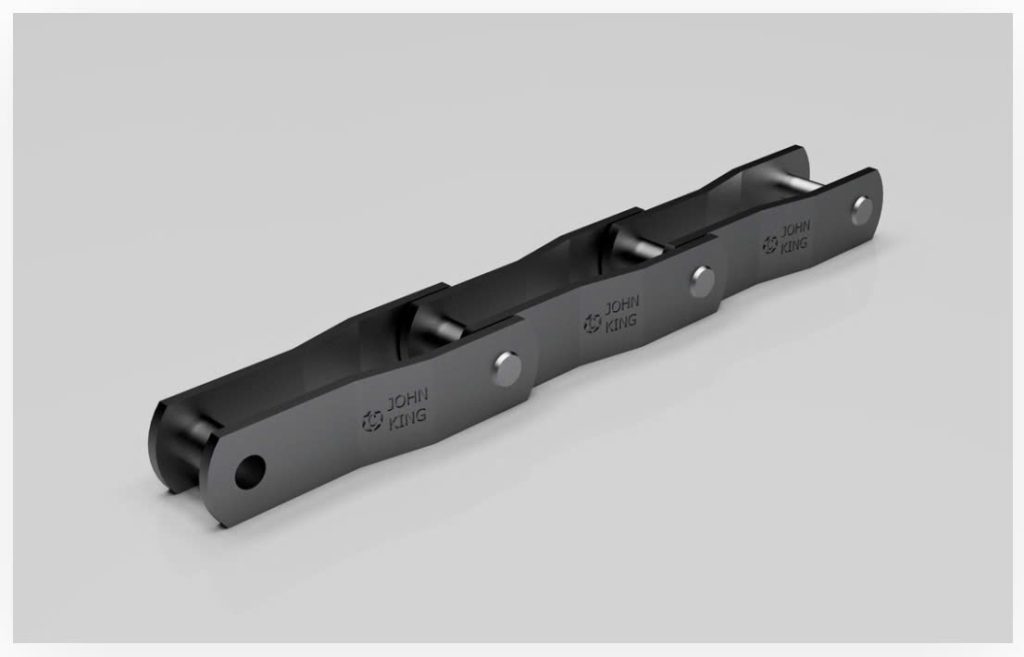

John King offer a unique range of welded steel chains dimensionally equivalent to M Series bush chains according to DIN8167. The chain offers all the benefits of the “offset” sidebar welded construction and can be offered as a direct replecement in existing conveyors and operate on same sprockets. This allows the user a unique opportunity to improve reliability and service life without major alteration.

Key Features:

  • Direct replacement with Metric standard DIN 8167,
  • Increased ultimate tensile strength of up to 65% as compared to standard M series chain,
  • Welded bush for increased shock resistance,
  • Best specification with all parts through hardened and surface induction hardening on pins and bushes,
  • Crank link design as US standard ISO DP6972. A beneficial construction with maintenance advantages,
  • Option to induction harden sliding surfaces,
  • Grease lubrication can be included if required,
  • Ease of maintenance with an option to remove one offset link not two as with straight sidebar chain.

WHM M Series Equivalent Welded Steel Chains

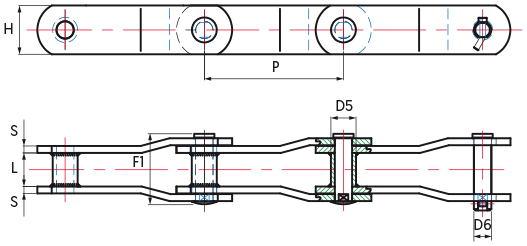

Chain Ref Pitch (mm) Bush Diameter (mm) Pin Diameter (mm) Pin Overall Length (mm) Inner Width (mm) Sideplate Thickness (mm) Sideplate Height (mm) Breaking Load (kN) Weight (kg/m)
WHM160/100/IBR* 100 25 18 72 37 7 50 270 9.5
WHM160/125/IBR* 125 25 18 72 37 7 50 270 8.7
WHM160/160/IBR* 160 25 18 72 37 7 50 270 8.0
WHM224/160/IBR* 160 30 21 84 42 8 60 375 12.8
WHM224/200/IBR* 200 30 21 84 42 8 60 375 11.6
WHM224/250/IBR* 250 30 21 84 42 8 60 375 10.8
WHM315/160/IBR* 160 36 25 97 48 10 70 520 17.8
WHM315/200/IBR* 200 36 25 97 48 10 70 520 16.4
WHM450/200/IBR* 200 42 30 116 56 12 80 700 23.8
WHM450/250/IBR* 250 42 30 116 56 12 80 700 22.1
WHM630/200/IBR* 200 50 36 136 66 14 100 900 38.9
WHM630/250/IBR* 250 50 36 136 66 14 100 900 34.2
WHM630/315/IBR* 315 50 36 136 66 14 100 900 31.7

* IBR represents uprated specification with fully heatreated components together with induction hardened barrel (bush) and pin.
